Description

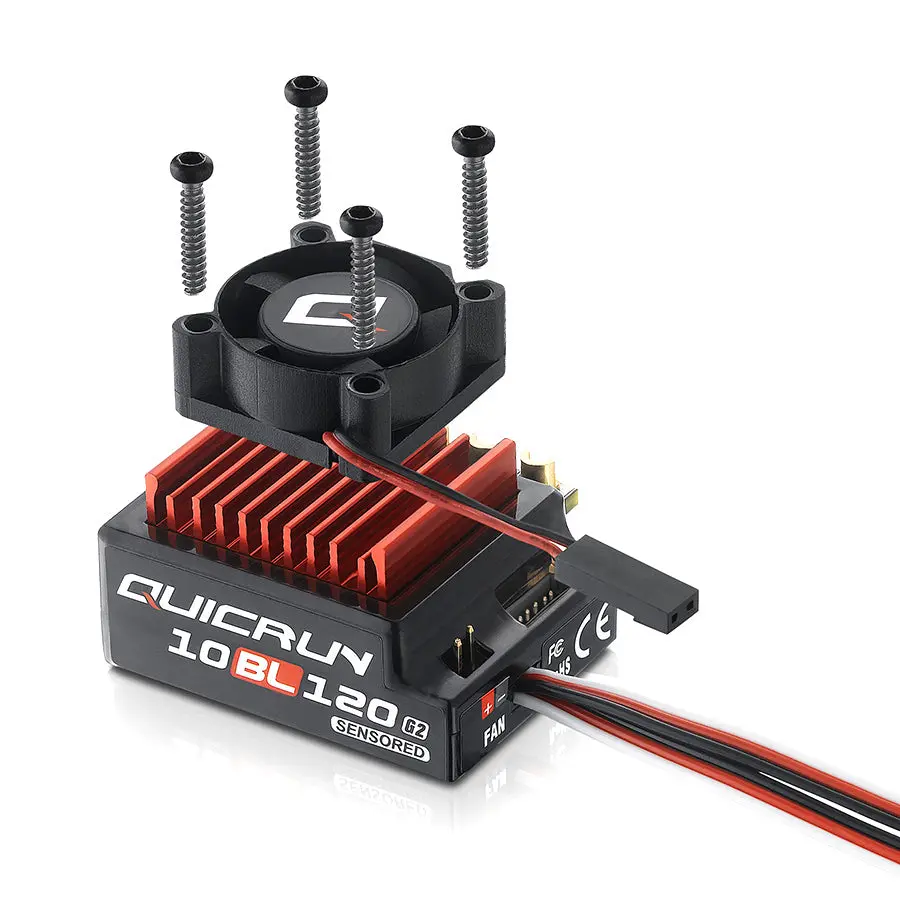

Hobbywing (#30125002) QuicRun WP 10BL120 G2 Sensored Brushless ESC
Feature:
- The new 10BL120 G2, takes the outstanding quality and durability of proven HOBBYWING platforms and makes it even easier to use and setup. The perfect choice for 10th scale setups.
- BEC upgrade, stronger driver. The BEC’s continuous output current has been upgraded from 3A to 4A. The maximum current is at 7A, and the output voltage is now 6V/7.4V adjustable.
- The 10BL120 G2 features adjustable electronic timing.
- The ESC is built using top of the line hardware, and proven software to provide a robust and reliable platform.
- The motor rotation is adjustable CW (clockwise) and CCW (counterclockwise), adapting to different chassis.
- Programmable by set button, LED Program Box (sold separately), or Multifunction LCD Program Box (sold separately)
Specification:
- Type: Sensored/Sensorless Brushless
- KV Rating/T Count: 2S Lipo ≥ 4.5T, 3S Lipo ≥ 10.5T 3650 Size Motor
- Cont./Peak Current: 120A/760A
- Input: 2-3S Lipo
- BEC Output: Switch Mode 6V/7.4V @4A
- Size: 43 x 36.8 x 32.3mm
- Weight: 101.5g (w/ Wires)
- Fan Size: 25 x 25 x 10mm
- Fan Voltage Range: 5-8.4V
What is included:
- Hobbywing (#30125002) QuicRun WP 10BL120 G2 Sensored Brushless ESC (1 pc)
- Instruction Manual (1 pc)
