Description

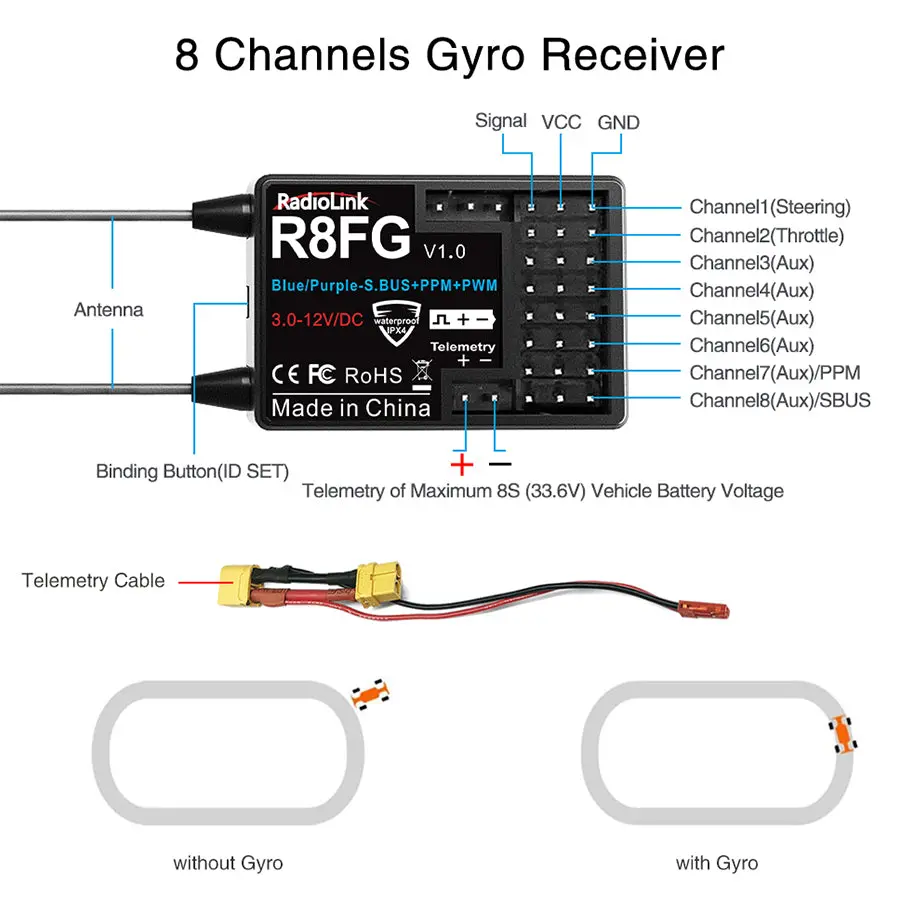

RadioLink (#R8FG) R8FG 2.4GHz 8-Channel Dual Antenna Receiver
Feature:
- For: RadioLink RC8X / RC6GS V3 / RC4GS V3 / RC6GS V2 / RC4GS V2 / RC6GS (3-position switch version) / RC4GS (version with P.D AFTER 180101) / T8FB(BT) / T8S(BT) / T8FB(OTG) / T8S(OTG)
- 600 Meters Control Distance
- FHSS Hopping Communication, Anti-Interference
- Gyro Integrated and Customizable Gyro Sensitivity
- Real-time Built-In Telemetry of Model Battery Voltage
- PWM, SBUS, and PPM Signal Supported
- Water Splash Proof (IPX4)
- Anti-polarity Connect Protection, Power by Wide Voltage
- Wide Transmitters Compatible
Specification:
- Dimensions: 35 x 24 x 13.5mm (1.38″ x 0.94″ x 0.53″)
- Antenna Length: 205mm (8.07″)
- Weight: 10.5g (0.37oz)
- Operating Voltage: 3-12V
- Operating Current: 35mA(5V)
- Channel: 8 channels
- Signals: SBUS&PPM&PWM
- Telemetry: Real-time built-in telemetry of model battery voltage, RSSI, and receiver voltage
- Gyro: Receiver with gyro integrated, customizable gyro sensitivity
- Water Splash Proof: The waterproof grade is IPX4
- Applicable Model Types: Car (Including Crawlers/Tanks/Caterpillars)/Boat/Robot
- Frequencies Band: 2.4GHz ISM band (2400MHz~2483.5MHz)
- Spread Spectrum Mode: FHSS, 67 channels pseudo random frequency hopping
- Control Distance: 600 meters
- Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS (3-position switch version)/RC4GS (version with P.D AFTER 180101)/T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)
What is included:
- RadioLink (#R8FG) R8FG 2.4GHz 8-Channel Dual Antenna Receiver (1 pc)
- Engine Voltage Telemetry Connect Cable (1 pc)
