Description

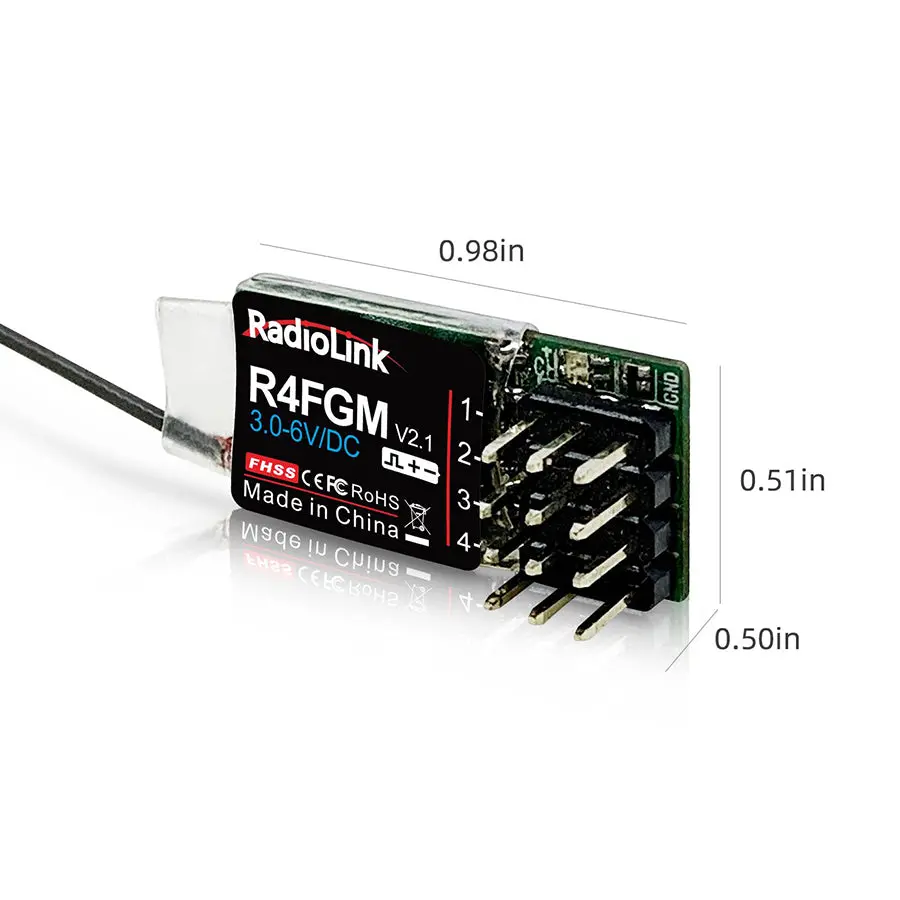

RadioLink (#R4FGM) R4FGM Mini 2.4GHz 4 Channels Receiver
Feature:
- The extremely compact size with dimension of 25*13mm and weight of 3g makes R4FGM even ideal for 1:28 mini RC cars.
- FHSS Hopping Communication, Anti-Interference.
- Gyro Integrated.
- 4096 Resolution Ratio.
- 400 Meters Control Distance.
- Reverse Polarity Protection, Powered by Wide Voltage.
Specification:
- Frequency: 2.4GHz ISM
- Channel: 4 channels
- Signal Output: PWM
- Model Application: Cars/Boats/Micro Airplane/Glider
- Spread Spectrum: FHSS 67-channel pseudo-random frequency hopping
- Antenna Length: 90mm (3.54″)
- Voltage Range: 3-6V
- Operation Current: 30mA@5V
- Control Range: 400 meters(1312ft)
- Compatible transmitter: RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/RC6GS/RC4GS/T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)
- Size: 25 x 13mm (0.98″ x 0.51″)
- Weight: 3g(0.11oz)
What is included:
- RadioLink (#R4FGM) R4FGM Mini 2.4GHz 4 Channels Receiver (1 pc)
Note:
- When bound to RC8X, 3ms, 4ms, and 14ms can be selected, if bind to other transmitters, it defaults to 14ms.
- If 3ms or 4ms digital servo speed is selected, make sure the firmware of RC8X has updated to V1.1.5 or above, and FHSS V2 protocol to display this option. R4FGM is V2.1 or R4FGM with a factory date of 2023/4/26 and later.
