Hobbywing Quicrun 10BL60 G2 Sensored Brushless ESC for RC Cars & Trucks

Description

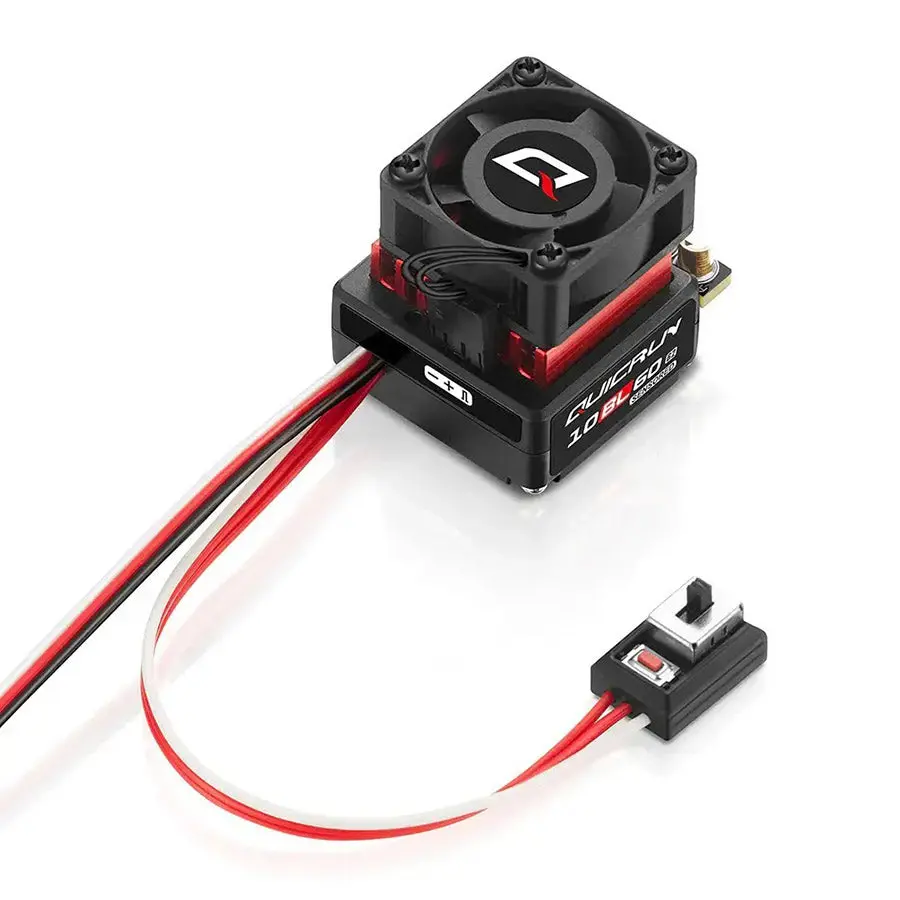

Hobbywing (#30108001) QuicRun 10BL60 G2 Sensored Brushless ESC

Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or trouble shooting.

Key Upgrades from G1 to G2

• The continuous BEC output current has increased from 2A to 4A
• A peak BEC current of up to 7A
• Switchable BEC output voltages of 6V / 7.4V
• It effortlessly powers high‑torque and high‑voltage servos, giving users a smooth and responsive control experience.

Feature:

• Support Boost/Turbo timing technology: With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.
• High reliability and durability: A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability.
• Support multiple programming methods: The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.
• Support Motor Rotation Adjustment: This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.

Specification:

• Type: Sensored Brushless
• Cont./Peak Current: 60A/200A
• Input: 2S LiPo
• BEC Output: Switch Mode 6V/7.4V @4A
• Size: 35.0 x 31 x 30.8mm
• Weight: 66.5g (w/ Wires)

Supported Program Methods:

• SET Button on ESC: Supported
• LED Program Box: Supported
• LCD G2 Program Box: Supported
• LCD PRO: Supported (Bluetooth not supported)
• OTA Programmer: Not Supported
• Program Port: Shared with fan port

What is included:

• Hobbywing (#30108001) QuicRun 10BL60 G2 Sensored Brushless ESC (1 pc)
• Instruction Manual (1 pc)
