Description

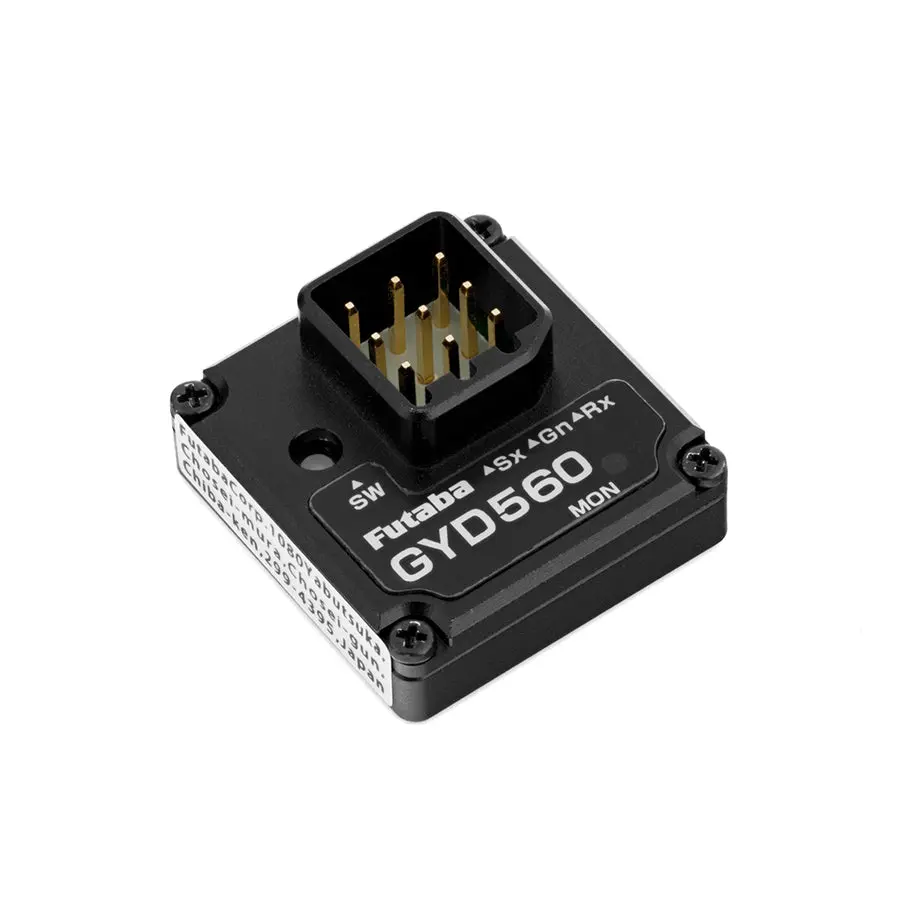

Futaba GYD560 Drift Steering Gyro
Feature:
- High-speed response system Compatible with F-4G UR mode servos.
- Remote gain function: Set the gyro sensitivity from the transmitter. (A transmitter/receiver with 3 or more channels and capable of adjusting the steering angle of 3 channels is required.)
- Settings specifically for RC drift cars: Reduces the effects of road surfaces and other factors, and combined with the response of UR mode, supports impressive drifting.
- Ultra-compact and lightweight: Ultra-compact and lightweight design achieved through full use of high-density mounting technology.
- Aluminum case used: The use of a robust, highly rigid, and lightweight aluminum case transmits chassis movement to the internal sensors more accurately.
- Compatible with S.BUS systems (can also be used with systems other than S.BUS): Can be connected via S.BUS in combination with an S.BUS receiver.
- For digital servos only: For use with Futaba HPS/BLS servos and digital servos only. Analog servos cannot be used.
- Normal/AVCS mode.
- High-speed response mode.
- High gain mode.
- Tail slide speed adjustment.
- Gyro curve adjustment.
- Left and right endpoint adjustment.
- Damper adjustment.
- Stick priority mode adjustment.
- Supports wireless adjustment function. *Wireless settings are only available for F-4G systems: T10PX, T6PV, R404SBS, and R404SBS-E. T10PX, T6PV, R404SBS, R404SBS-E to versions compatible with wireless settings for GYC480 and GYD560, A software update is required.
Specification:
- Angular velocity detection method: Vibration gyro sensor
- Operating voltage: DC 3.5 V to 8.4 V
- Current consumption: 30mA (when servo is not connected)
- Operating temperature: -10℃~+45℃
- External dimensions: 20.7 x 21.7 x 10.6mm (excluding protrusions)
- Weight: 5.4g
- Functions: Monitor LED, S.BUS/S.BUS2 compatible
What is included:
- Futaba GYD560 Drift Steering Gyro (1 pc)
