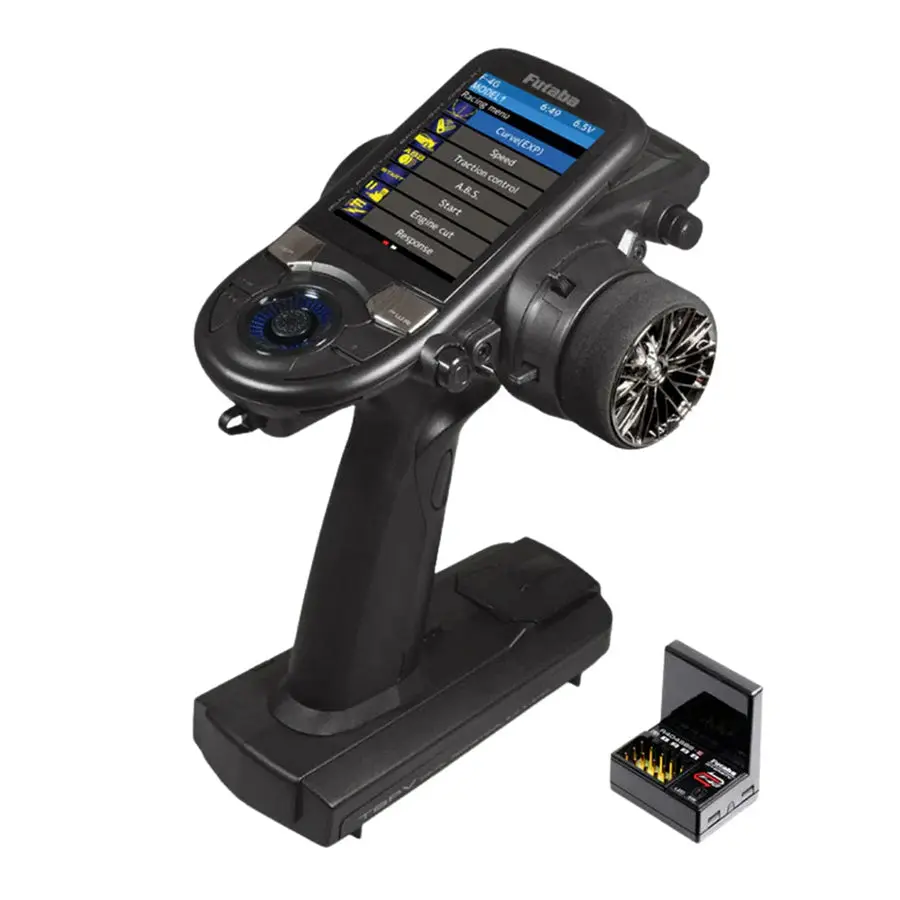

Futaba 6PV 2.4 GHz Transmitter with R404SBS-E Receiver

Description

Futaba 6PV 2.4GHz Radio System Transmitter w/ R404SBS-E

Feature:

Display

• Full-color, backlit LCD screen
• Transflective screen ensures visibility indoors and outdoors

Performance & Connectivity

• F-4G system with faster telemetry response than T-FHSS SR
• 6-channel support with S.BUS2 system
• T-FHSS MINIZ system compatible with Kyosho Mini-Z Evo (RA-42 receiver required)

Software & Storage

• Firmware updatable via microSD card
• Supports model data and telemetry log saving
• Model memory for up to 40 models with custom names (up to 15 characters)

Power Options

• Compatible with optional LT2F2000B LiPo battery for extended runtime

Mixing Functions

• Brake mixing for large cars (e.g., 1/5 GP)
• Steering mixing for independent left/right servos
• 4WS mixing for crawlers and 4-wheel steering types
• Dual ESC mixing for front and rear ESC control
• Gyro mixing with adjustable sensitivity (Futaba gyros)
• Tank mixing support for tracked vehicles
• CPS mixing for LED light control via CPS-1 switch

Advanced Servo/ESC Settings

• S.BUS servo setting support with PC Link software
• MC-Link for adjusting Futaba ESC settings directly from the T6PV

Speed & Response Settings

• Throttle speed control for smooth acceleration and reduced wheel spin
• Steering speed adjustment to control servo movement rate

Customization & Ergonomics

• Non-telemetry LED indicator
• Dial select function for digital trims, knobs, and grip dials
• Switch select function for 10 customizable switches
• Adjustable wheel and trigger positions (with APA adapter)
• Interchangeable rubber grips (narrow grip compatible)
• Trim/dial lock function to prevent accidental changes
• Built-in grip vibrator for timer, lap, low battery, and telemetry alerts

USB Functionality

• USB port allows use as a game controller on compatible PC games

Specification:

• System: TFHSS-SR, T-FHSS System
• Channel: 4CH
• Transmitting Frequencies: 2.4 GHz band/ -Transmitting
• Protocols: T-FHSS-SR/T-FHSS/S-FHSS/F-4G
• Maximum Operating Range: 100m (Except the MINIT system) (Optimum condition)
• RF Power Output: 100mW EIRP
• Power Requirement: LiPo – NLF2F2000B (7.4 V) / LiFe – FT2F1700BV2 (6.6V)
• Current Drain: 350 mA or less (When the T-FHSS, Vibration off, back lighting on)
• Transmitting Antenna: 1/2λ dipole

Receiver:

• Model: R404SBS-E

What is included:

• Futaba 6PV 2.4GHz Radio System Transmitter (1 pc)
• R404SBS-E Receiver (1 pc)
• Manual
