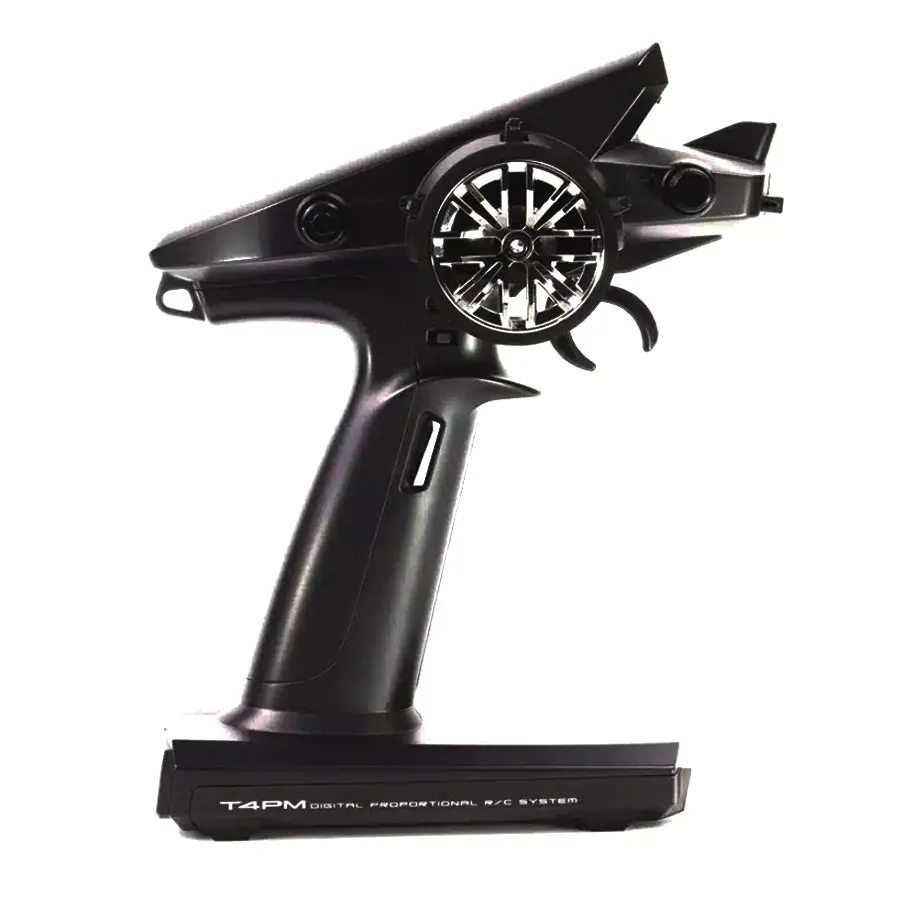

Futaba 4PM Plus 2.4 GHz RC Transmitter

Description

Futaba 4PM PLUS 2.4GHz Radio System Transmitter w/ R334SBS

Feature:

• T-FHSS SR (SUPER RESPONSE) AND TELEMETRY T-FHSS
• T-FHSS MINIZ SYSTEM
• TELEMETRY SYSTEM
• 2.4 GHZ SS RADIO COMMUNICATION SYSTEM
• MODEL MEMORY FOR 40 MODELS
• 4 AXIS JOG BUTTON
• ESC-LINK FUNCTION (MC-LINK)
• S.BUS SERVO
• STEERING MIXING
• BRAKE MIXING FOR LARGE CARS (BRAKE)
• GYRO MIXING (GYRO MIX)
• 4WS MIXING FOR CRAWLERS AND OTHER 4WS TYPE (4WS)
• DUAL ESCS MIXING FOR CRAWLERS CARS (DUAL ESC)
• CPS-1 MIXING (CPS MIX)
• ANTI-SKID BRAKING SYSTEM (TH A.B.S)
• THROTTLE ACCELERATION (ACCEL)
• THROTTLE SPEED (SPEED)
• STEERING SPEED (SPEED)
• RACING TIMER (TIMER)
• FUNCTION SELECT SWITCH (SWITCH)/DIAL FUNCTION (TRIM DIAL)
• TRIGGER POSITION CAN BE CHANGED
• TENSION ADJUSTMENT FUNCTION
• MECHANICAL ATL ADJUSTMENT

Specification:

• System: T-FHSS SR/T-FHSS/S-FHSS systems
• Channel: 4CH
• Transmitting Frequencies: 2.4 GHz band
• Communication Method: Bidirectional protocol
• Maximum Operating Range: 100m (Except the MINIT system) (Optimum condition)
• RF Power Output: 100mW EIRP
• Protocols: T-FHSS SR/T-FHSS/S-FHSS
• Power Requirement: (Dry Cell Battery) Penlight x 3 (4.5 V) / LiFe – FT2F1700BV2 (6.6V)
• Current Drain: 150 mA or less
• Transmitting Antenna: 1/2λ dipole

Receiver:

• Model: R334SBS

What is included:

• Futaba 4PM 2.4GHz Radio System Transmitter (1 pc)
• R334SBS Receiver (2 pcs)
• Manual
