Compact High-Precision Mini Servo Designed for OMG H2-Mi-CF11S Remote-Control Helicopters

Description

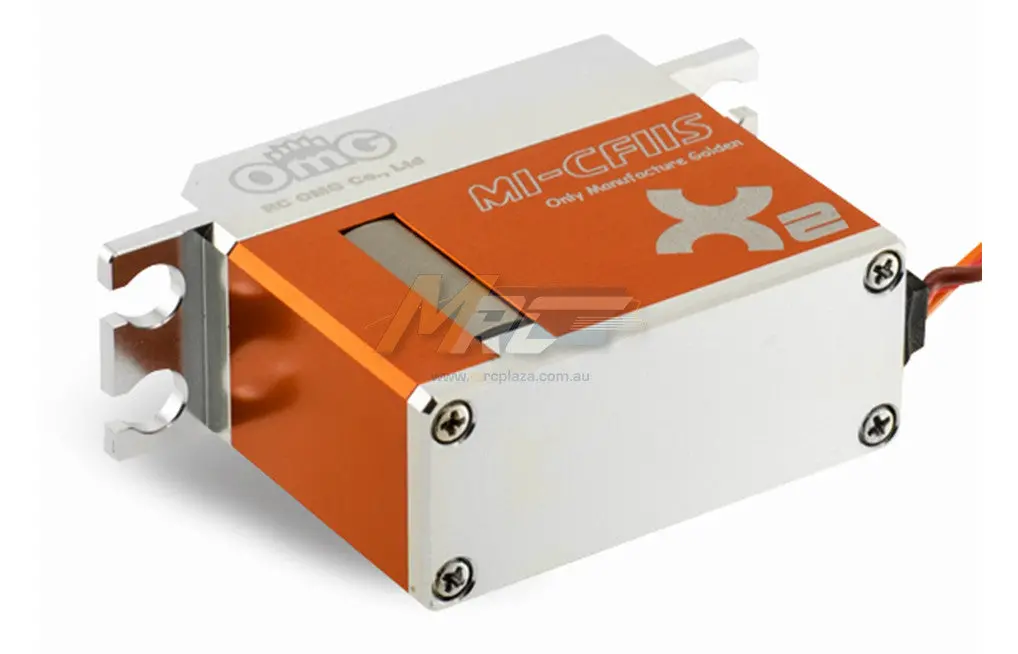

OMG H2-MI-CF11S Class 500 Helicopter Rotor Mini Servo

Feature:

• Specially designed to operate your class 500 helicopter cyclic with extreme precision by having the best combination of torque and speed
• Reinforced titanium gears to ensure a low maintenance experience and resistance during crashes
• Capable of running on voltages up to 8.4V
• Quiet, fast, precise, durable and has minimal power consumption
• Gears are titanium coated specially for superior endurance and durability

Specification:

• Type: Digital
• Operating Voltage Range: 6.0 – 8.4Volts DC
• Bearing Type: Dual Ball Bearings
• Speed (s/60°@6.0V/7.4V/8.4V): 0.08 / 0.07 / 0.065
• Torque oz./in. (6.0V/7.4V/8.4V): 125 / 153 / 167
• Torque kg./cm. (6.0V/7.4V/8.4V): 9 / 11 / 12
• Size : 36 x 15.2 x 28.8mm
• Weight: 35g
• Motor Type: Coreless motor
• Control System: +Pulse Width Control 1500µsec Neutral
• Required Pulse: 3-5 Volt
• Operating Temperature Range(℃): -10° – 50°
• Idle Current (@6.0V/7.4V/8.4V): 20mA
• No Load Running Current (6.0V/7.4V/8.4V): 80mA/100mA
• Stall Current (6.0V/7.4V/8.4V): 2500mA/3200mA
• Dead Band Width: 4µs
• Potentiometer Type: Rotating(Max.220°)
• Connector Wire Length: 7.08 in. / 300 mm. OMG wire
• Connector Wire Gauge: 28 AWG
• Connector Type: JR
• Gear Type: Titanium gears
• Frequency: 330Hz
• Shaft: 5.9mm 25T

What is included:

• OMG H2-MI-CF11S Class 500 Helicopter Rotor Mini Servo (1 pc)
