Acuvance Tao III Smart Access Control System

Description

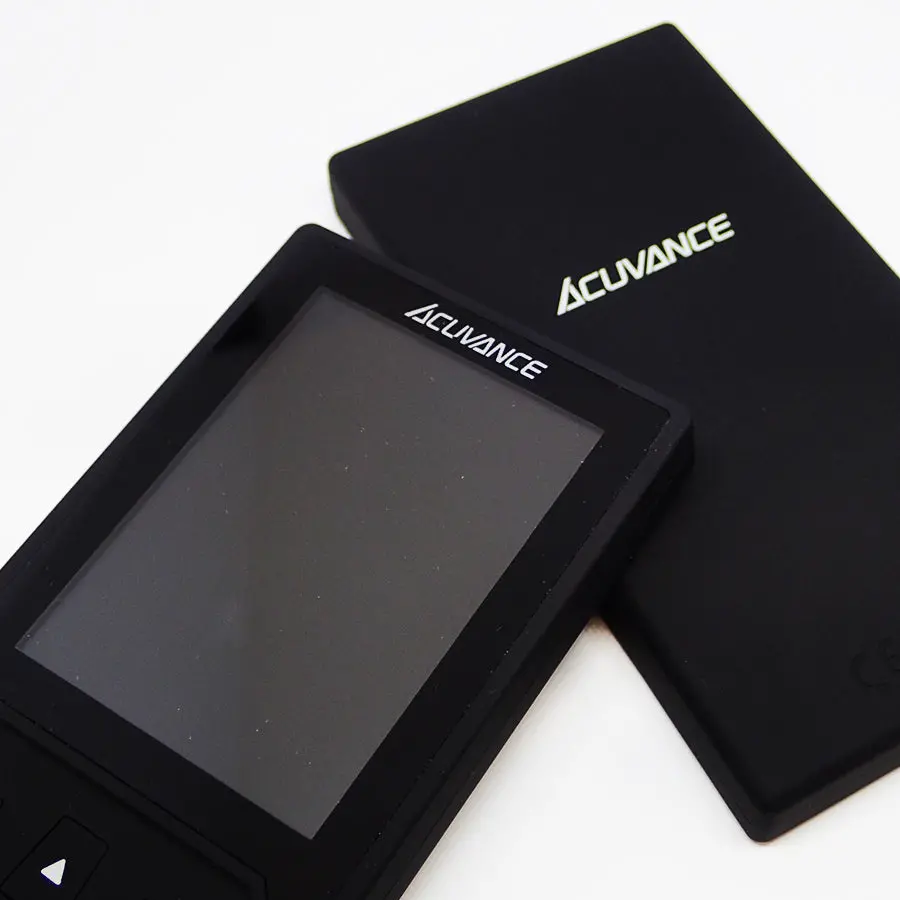

Acuvance TAO III Smart Access

Feature:

• Equipped with a [DIRECT SETTING MODE] that allows you to intuitively set the ESC from the driving situation and car setting to bring out the performance of the ESC / motor simply by entering the driving conditions. Even beginners can easily enjoy the performance of the XARVIS series and motors with fine adjustments to a wide variety of detailed settings
• Driving Condition Example:

1. Course type : High-Speed / Short
2. Type of road surface : P-tile / Colored Concrete / Asphalt / Carpet
3. Road grip strength : Low / High
4. Number of motor turns : 10.5T / 13.5T

• [CUSTOM MENU] Function enables speedy setting change. This is a function that allows user to select, display, and adjust only the setting items that are frequently used. Scrolling time is shortened and setting changes can be made more quickly
• Setting data can be saved in TAOⅢ
• 2.8-inch TFT color LCD, the larger screen and higher definition of the TFT color LCD makes it easier to check each content
• Flat push switch has been adopted to improve operability and feel
• TAO III Smart Access: List of Function

Specification:

• Compatible with XARVIS / Futaba MC970CR / XARVIS XX (as of March 2021)
• Battery: Not equipped (Operated by ESC or external power connection)
• Operation Time: Depends on the specifications of the external power supply
• Display: 2.8 Inches TFT color LCD
• Mounted terminal: ESC LINK terminal / micro USB [Type B] terminal
• Communication method: Wired
• Size: 98 x 51 x 10.5mm
• Weight: 76g

What is included:

• TAO III Smart Access (1 pc)
• micro USB cable [TYPE B] (1 pc)
• ESC LINK cable 200mm (1 pc)
• Instruction Manual (1 pc)
